UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 300W /500 VA. - Nominal Output Voltage 230 V. - Output Connections (1) IEC 320 C13 (Surge Protection) (3) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) - Typical recharge time 6 hours. - Typical Backup Time at Half Load 13.9 minutes (150 Watts). - Typical Backup Time at Full Load 2.4 minutes 300 Watts). - DB-9 RS-232,USB Interfaces Ports. - LED status display with On Line,On Battery, Replace Battery and Overload indicators. - Alarm when on battery distinctive low battery alarm, overload continuous tone alarm.
More info
|
|
|
|
|
|

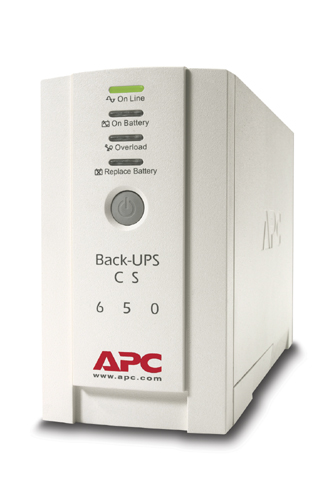

UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 400W/650 VA. - Nominal Output Voltage 230 V. - Output Connections (1) IEC 320 C13 (Surge Protection) (3) IEC 320 C13 (Battery Backup) - Typical recharge time 8 hours. - Typical Backup Time at Half Load 11.4 minutes (200 Watts). - Typical Backup Time at Full Load 2.4 minutes (400 Watts). - DB-9 RS-232,USB Interface Ports. - LED status display with On Line : On Battery : Replace Battery and Overload indicators. - Alarm when on battery : distinctive low battery alarm, overload continuous tone alarm.
More info
|
|
|
|
|
|

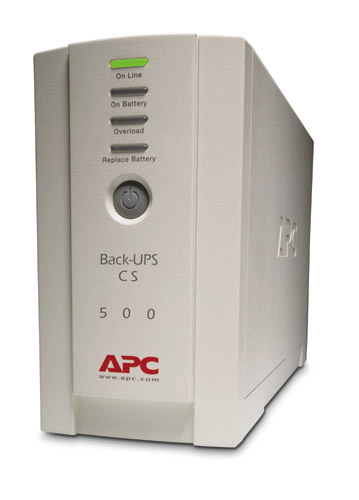

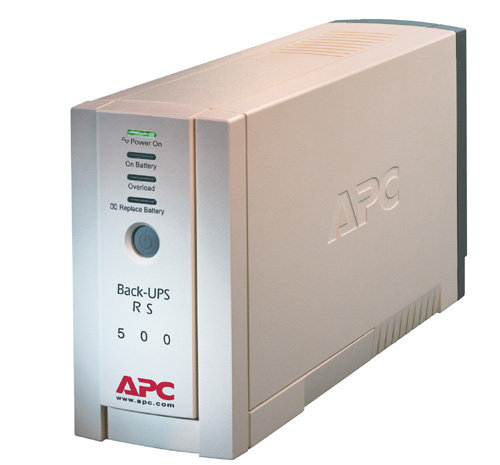

UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 300 Watts / 500 VA. - Nominal Output Voltage 230 V. - Output Connections (1) IEC 320 C13 (Surge Protection) (3) IEC 320 C13 (Battery Backup) - Typical recharge time 8 hours. - Typical Backup Time at Half Load 12.4 minutes (150 Watts). - Typical Backup Time at Full Load 5.8 minutes (300 Watts) - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery : distinctive low battery alarm, overload continuous tone alarm.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 540 W/ 800 VA - Nominal Output Voltage 230 V. - Output Connections (2) IEC 320 C13 (Surge Protection) (4) IEC 320 C13 (Battery Backup) (1) IEC Jumpers (Battery Backup) - Typical recharge time 8 hours. - Typical Backup Time at Half Load 17.6 minutes (270 Watts). - Typical Backup Time at Full Load 5.3 minutes (540 Watts). - USB Interface Port. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 600 W/1000 VA. - Nominal Output Voltage 230 V. - Output Connections (2) IEC 320 C13 (Surge Protection). (6) IEC 320 C13 (Battery Backup). - Typical recharge time 15 hours. - Typical Backup Time at Half Load 16.6 minutes (300 Watts). - Typical Backup Time at Full Load 5.9 minutes (600 Watts). - USB Interface Port. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|

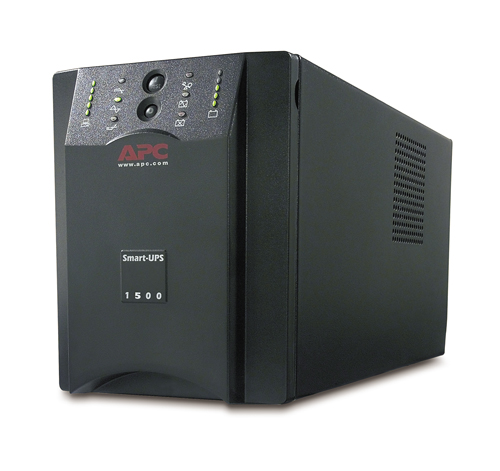

UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 865 W/1500 VA. - Nominal Output Voltage 230 V. - Output Connections (2) IEC 320 C13 (Surge Protection). (6) IEC 320 C13 (Battery Backup). - Typical recharge time 8 hours. - Typical Backup Time at Half Load 12.7 minutes (432.5 Watts) - Typical Backup Time at Full Load 3.7 minutes (865 Watts) - USB Interface Port. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 260 W / 420 VA - Nominal Output Voltage 230 V. - Output Connections (1) IEC 320 C13 (Surge Protection). (3) IEC 320 C13 (Battery Backup). (2) IEC Jumpers (Battery Backup). - Typical recharge time 3 hours. - Typical Backup Time at Half Load 13.5 minutes (130 Watts). - Typical Backup Time at Full Load 5.5 minutes (260 Watts) - DB-9 RS-232 Interfaces Ports. - LED status display with On Line, On Battery, Replace Battery and Overload indicators. - Alarm when on battery distinctive low battery alarm, overload continuous tone alarm.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 390 W / 620 VA - Nominal Output Voltage 230 V. - Output Connections (1) IEC 320 C13 (Surge Protection). (3) IEC 320 C13 (Battery Backup). (2) IEC Jumpers (Battery Backup). - Typical recharge time 5.5 hours. - Typical Backup Time at Half Load 15.7 minutes (195 Watts). - Typical Backup Time at Full Load5.5 minutes (390 Watts). - DB-9 RS-232 Interfaces Ports. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery : distinctive low battery alarm, configurable delays
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 500 W / 750 VA. - Nominal Output Voltage 230 V. - Output Connections (6) IEC 320 C13. (2) IEC Jumpers. - Typical recharge time 3 hours. - Typical Backup Time at Half Load 16.4 minutes (250 Watts). - Typical Backup Time at Full Load 4.8 minutes (500 Watts). - DB-9 RS-232,USB,SmartSlot Interfaces Ports. - LED status display with On Line : On Battery,Replace Battery and Overload indicators. - Alarm when on battery: distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 670 W / 1000 VA. - Nominal Output Voltage 230 V. - Output Connections (8) IEC 320 C13 . (2) IEC Jumpers. - Typical recharge time 3 hours. - Typical Backup Time at Half Load 20.6 minutes (335 Watts). - Typical Backup Time at Full Load 6.1 minutes (670 Watts). - DB-9 RS-232,SmartSlot,USB Interfaces Ports. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery: distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 1980 W / 2200 VA - Nominal Output Voltage 230 V. - Output Connections (8) IEC 320 C13 . (1) IEC 320 C19 (3) IEC Jumpers - Typical recharge time 3 hours. - Typical Backup Time at Half Load 24.1 minutes (990 Watts). - Typical Backup Time at Full Load 6.7 minutes (1980 Watts) - DB-9 RS-232,SmartSlot,USB Interfaces Ports. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery: distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|

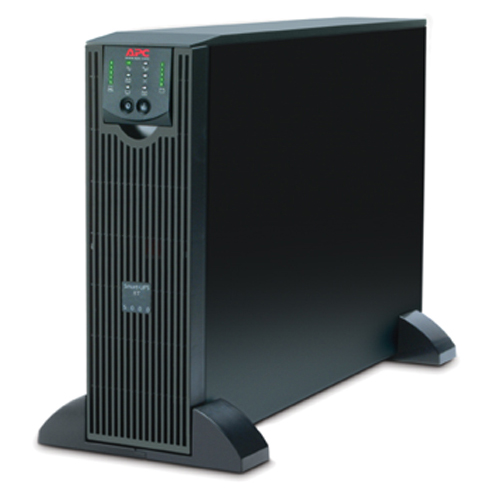

UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 3750 W / 5000 VA - Nominal Output Voltage 230 V. - Output Connections (8) IEC 320 C13 . (2) IEC 320 C19 (6) IEC Jumpers. - Typical recharge time 3 hours. - Typical Backup Time at Half Load 18.8 minutes (1875 Watts). - Typical Backup Time at Full Load5.7 minutes (3750 Watts). - DB-9 RS-232,RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management,SmartSlot Interfaces Ports. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery: distinctive low battery alarm, configurable delays.
More info
|
|
|
|
|
|
UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 3500 W / 5000 VA. - Nominal Output Voltage 230 V. - Output Connections (8) IEC 320 C13 . (2) IEC 320 C19. (6) IEC Jumpers. - Typical recharge time 2.5 hours. - Typical Backup Time at Half Load 15.4 minutes (1750 Watts). - Typical Backup Time at Full Load 5.0 minutes (3500 Watts). - DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot Interfaces Ports. - LED status display with On Line : On Battery, Replace Battery and Overload indicators. - Alarm when on battery : distinctive low battery alarm, overload continuous tone alarm
More info
|
|
|
|
|
|

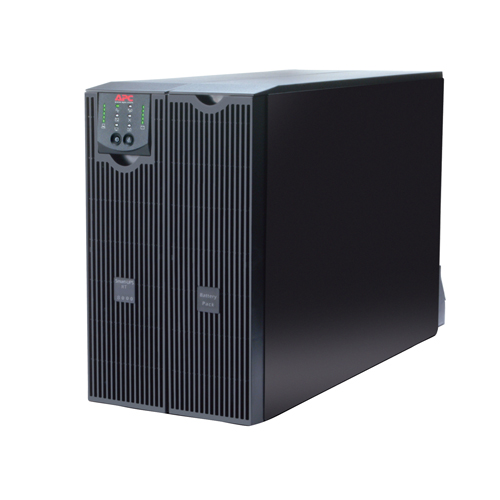

UPS
|
| |
|
|
Desc.
|
- Output Power Capacity 6400 W / 8000 VA - Nominal Output Voltage 230 V. - Output Connections (1) Hard Wire 3-wire (H N + G) (4) IEC 320 C13 . (4) IEC 320 C19 (4) IEC Jumpers. - Typical recharge time 2.2 hours. - Typical Backup Time at Half Load 17.9 minutes (3200 Watts). - Typical Backup Time at Full Load 6.3 minutes (6400 Watts). - DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot Interfaces Ports. - LED status display with On Line : On Battery, Replace Battery, Overload and Bypass Indicators. - Alarm when on battery: Distinctive low battery alarm, overload continuous tone alarm
More info
|
|
|
|
|
